# Node Options

## Node Options

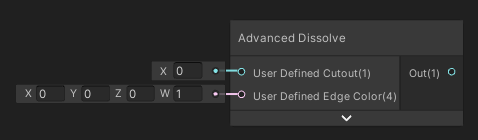

Advanced Dissolve node has two optional inputs:

<div align="left"><figure><img src="https://371873058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDmmEjlCGzGOqRX7UsP6L%2Fuploads%2FlkNEZuKcrXK07dji4rYx%2FShaderGraph_Advanced_Dissolve_Node%20(2).png?alt=media&#x26;token=c2b06251-c11c-4918-a753-8b882074105e" alt="" width="359"><figcaption></figcaption></figure></div>

#### **User Defined Cutout**

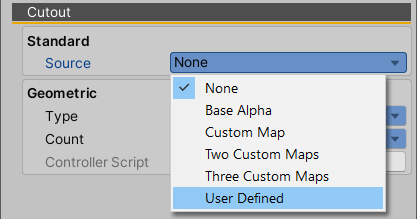

Advanced Dissolve shaders calculate cutout effect from **Standard** maps or using **Geometric** equations. With this option can be define custom cutout rule and it can be made active from the material, from the **Cutout** -> **Standard** group by enabling **User Defined** option:

<div align="left"><figure><img src="https://371873058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDmmEjlCGzGOqRX7UsP6L%2Fuploads%2FlHSlRvee1Ct3UbKFMj2M%2FMaterialEditoral_Cutout_Standard_List%20(User%20Defined).png?alt=media&#x26;token=133326ed-2c32-4d93-920d-b2802473c5c5" alt="" width="313"><figcaption></figcaption></figure></div>

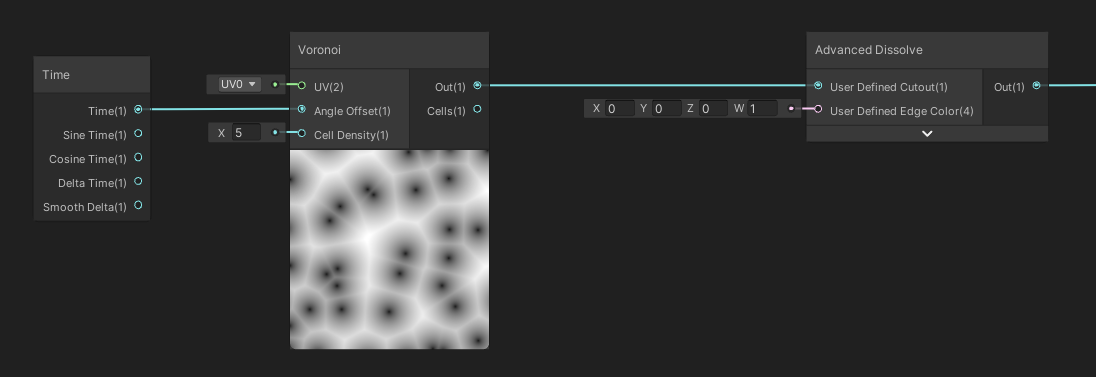

For example, this will create self animated Voronoi cutout effect:

<div align="left"><figure><img src="https://371873058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDmmEjlCGzGOqRX7UsP6L%2Fuploads%2FvDi3ADuIwonTeqMBcDto%2FShaderGraph_User_Defined_Voronoi.png?alt=media&#x26;token=1c031c1b-efc9-4c0a-8f82-33acc4f92cc3" alt=""><figcaption></figcaption></figure></div>

#### **User Defined Edge Color**&#x20;

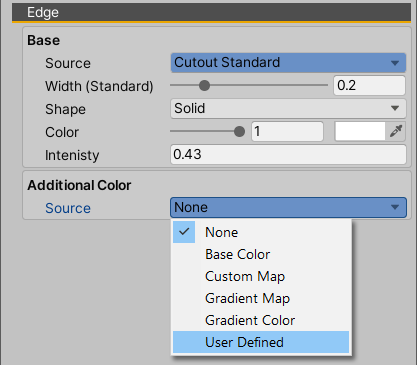

Allows to use custom color for dissolve edge visualization. If node uses this input, it can be made active in the generated shader by enabling **User Defined** option in the **Edge** -> **Additional Color** group:

<div align="left"><figure><img src="https://371873058-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDmmEjlCGzGOqRX7UsP6L%2Fuploads%2FuqHPXobdMThRe3KqBUUK%2FMaterialEditoral_Edge_Additional_Color_User_Defined.png?alt=media&#x26;token=1d487edd-5984-4dec-95b6-5dbf0307f470" alt="" width="313"><figcaption></figcaption></figure></div>
